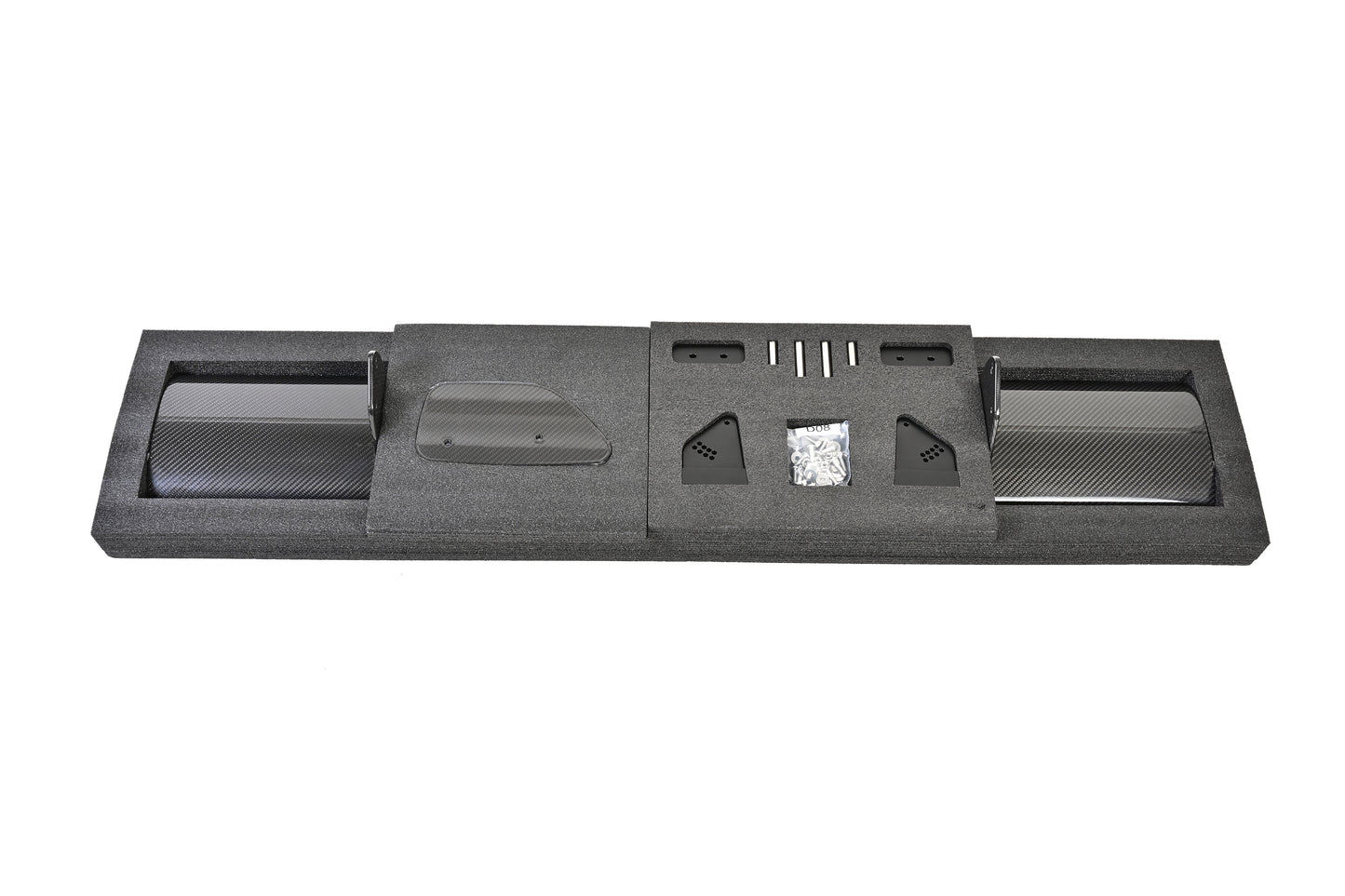

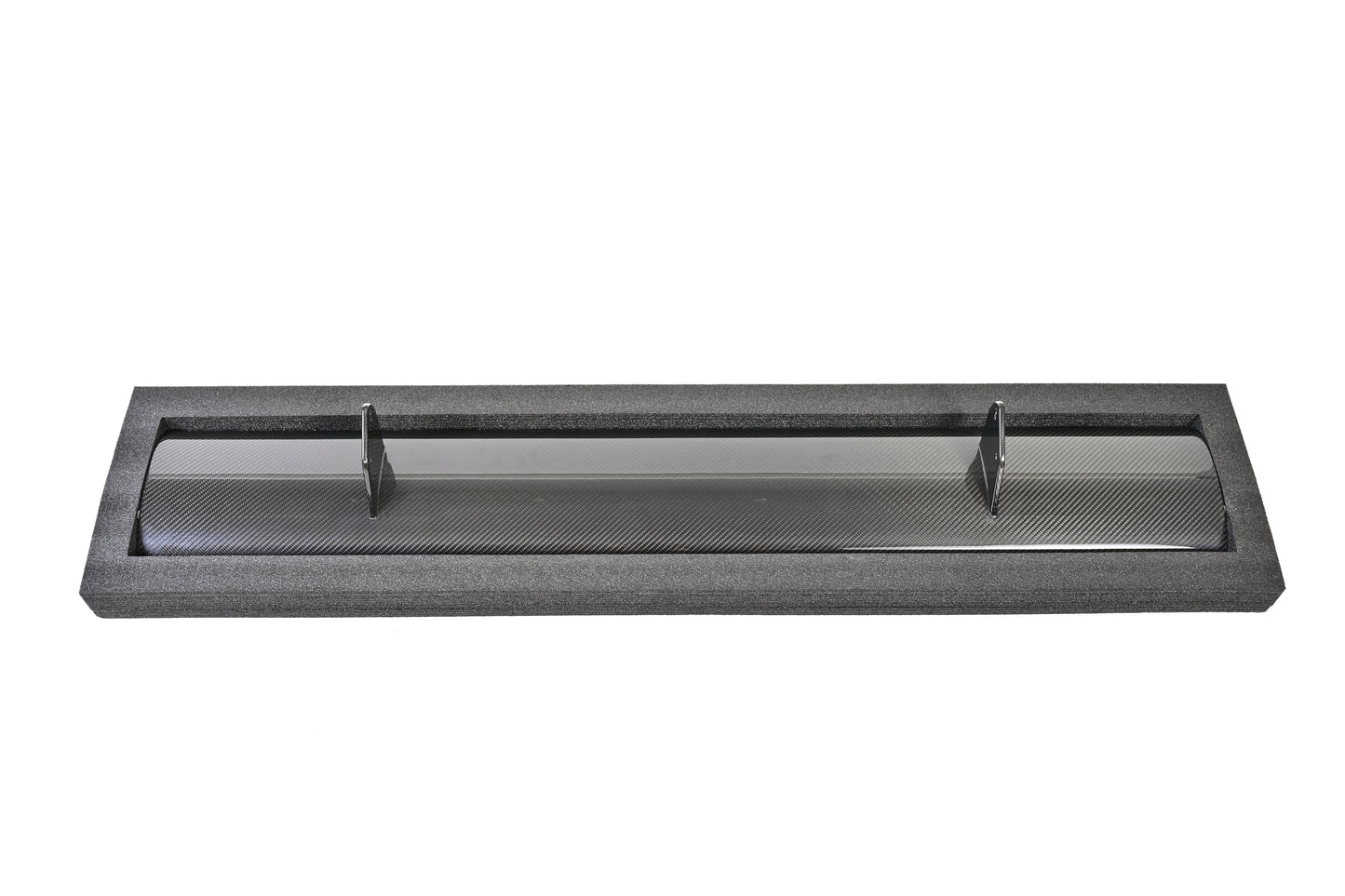

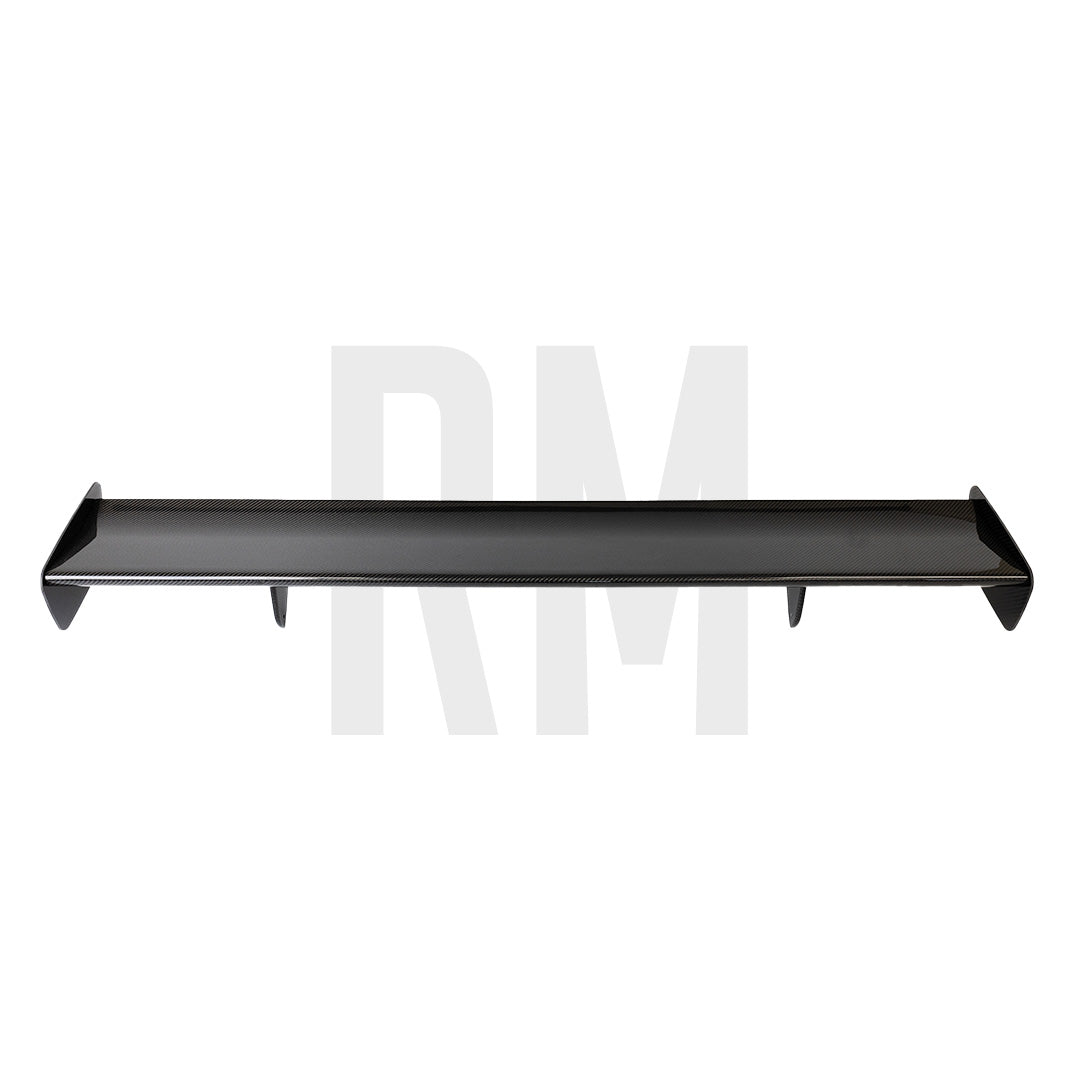

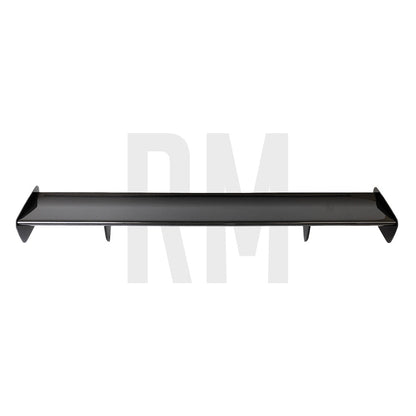

GT4 MK2 Rear Wing Overview
The Ridgeline Motorsport GT4 MK2 Rear Wing is a universal 140 × 21 cm carbon fiber rear wing developed for performance-focused street and track builds. It combines a larger GT4-inspired wing profile with 2x2 pre-preg dry carbon fiber construction, an adjustable wing angle and Standard or optional High-Mount stands.

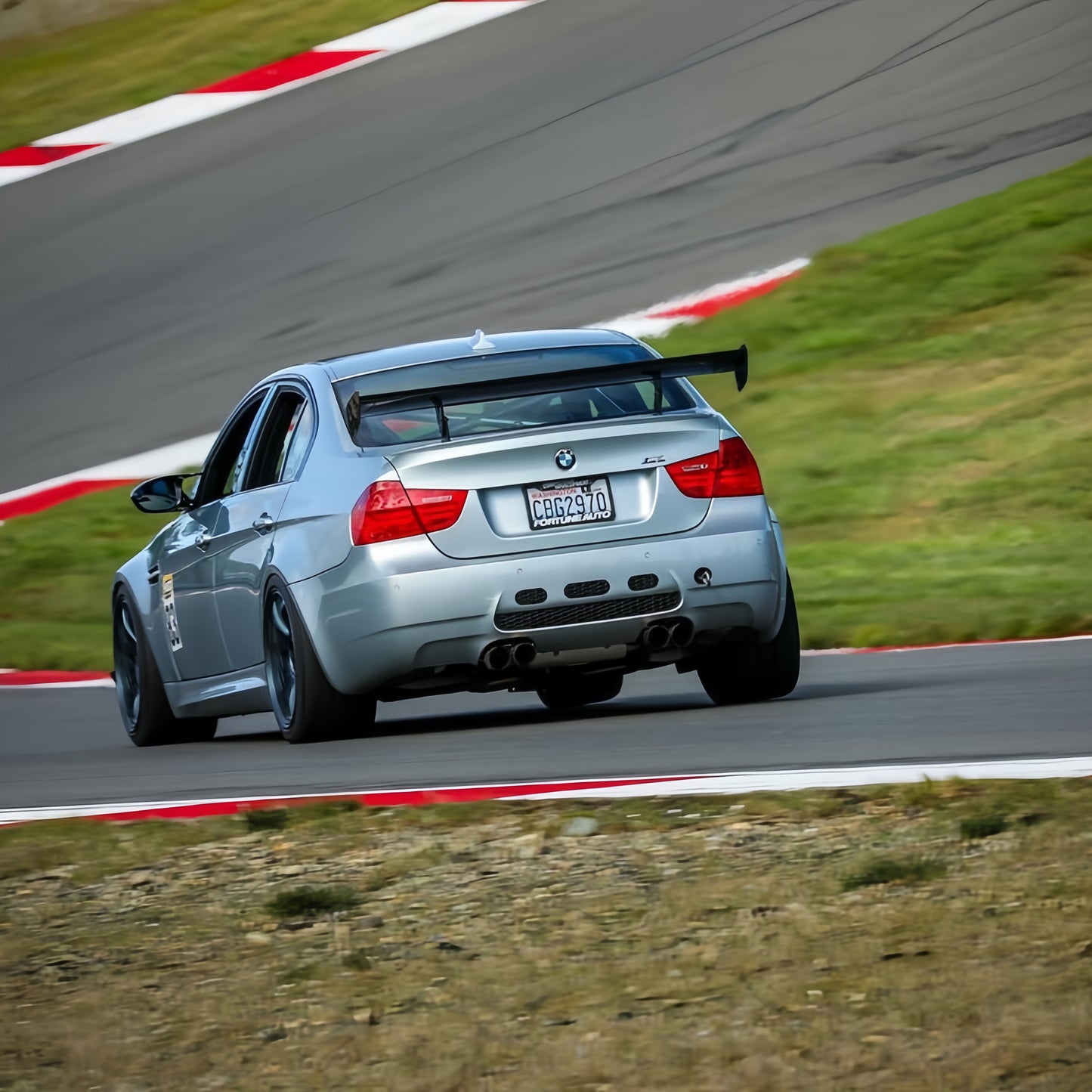

Although designed as a universal application, the GT4 MK2 is especially popular on BMW E90, E92 and E93 M3 builds.
Product Features
- Universal 140 × 21 cm rear wing
- Extended GT4-inspired wing profile
- 2x2 pre-preg autoclaved dry carbon fiber
- Adjustable wing-angle configuration
- Standard and optional High-Mount stands

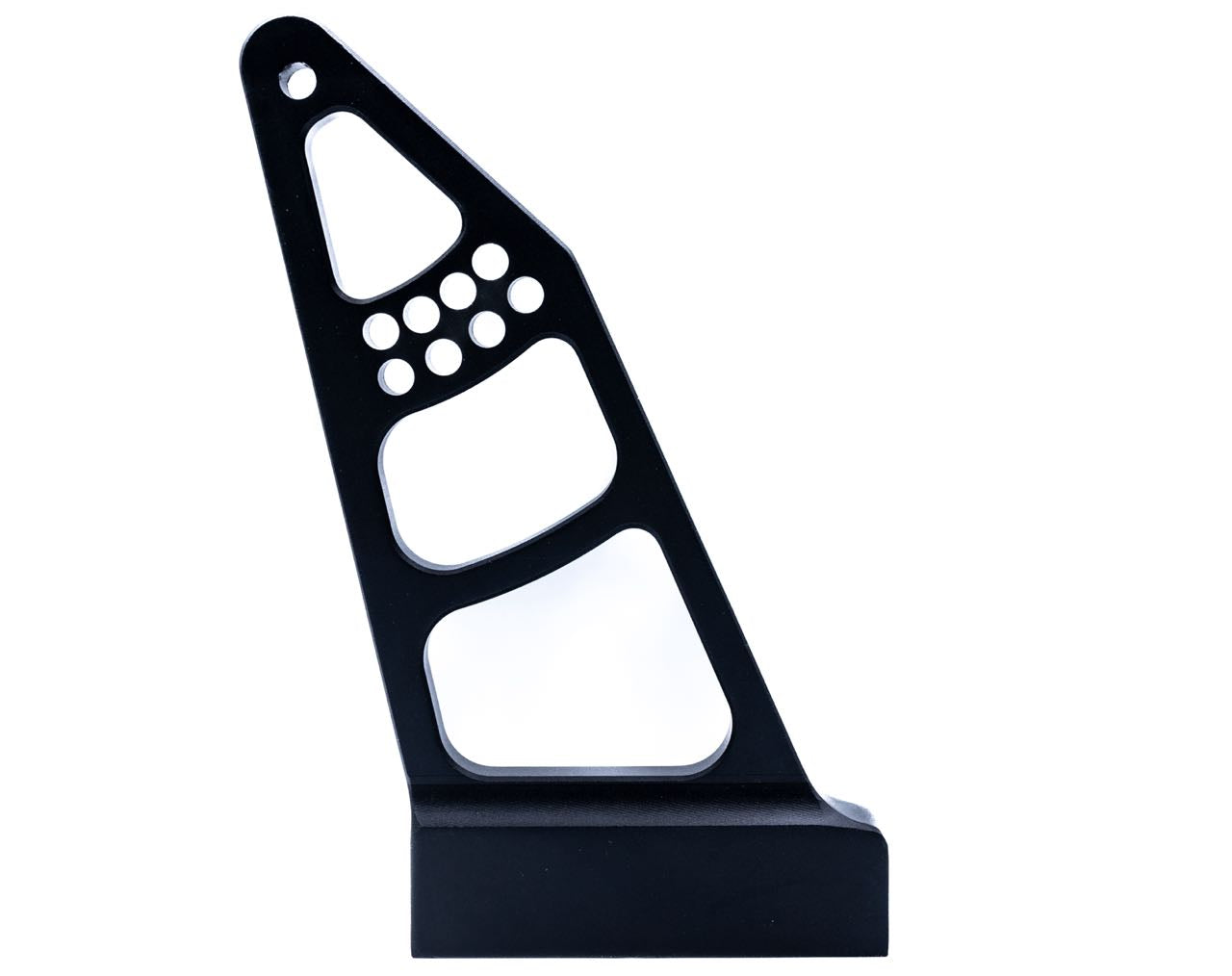

Standard vs. High-Mount Wing Stands
| Mount Option | Position |
|---|---|
| Standard | Lower mounting position for a more restrained rear-wing configuration |
| High Mount | Elevated mounting position for a more motorsport-focused configuration |
Replacement and standalone mounting components are available through the GT4 Wing Standard Mount and GT4 Wing High Mount product page.
GT4 MK2 Design and Development
The GT4 MK2 takes inspiration from a reengineered version of the OEM BMW GTS rear wing developed for motorsport use. Compared with the original GTS-style wing profile, the GT4 MK2 is approximately 18 cm wider and 6 cm longer, creating a larger aerodynamic surface area.
The increased surface area is intended to provide greater rear aerodynamic loading at speed, while the adjustable wing angle allows the configuration to be adapted to different vehicles and overall aerodynamic setups.
Pre-Preg Dry Carbon Fiber Construction

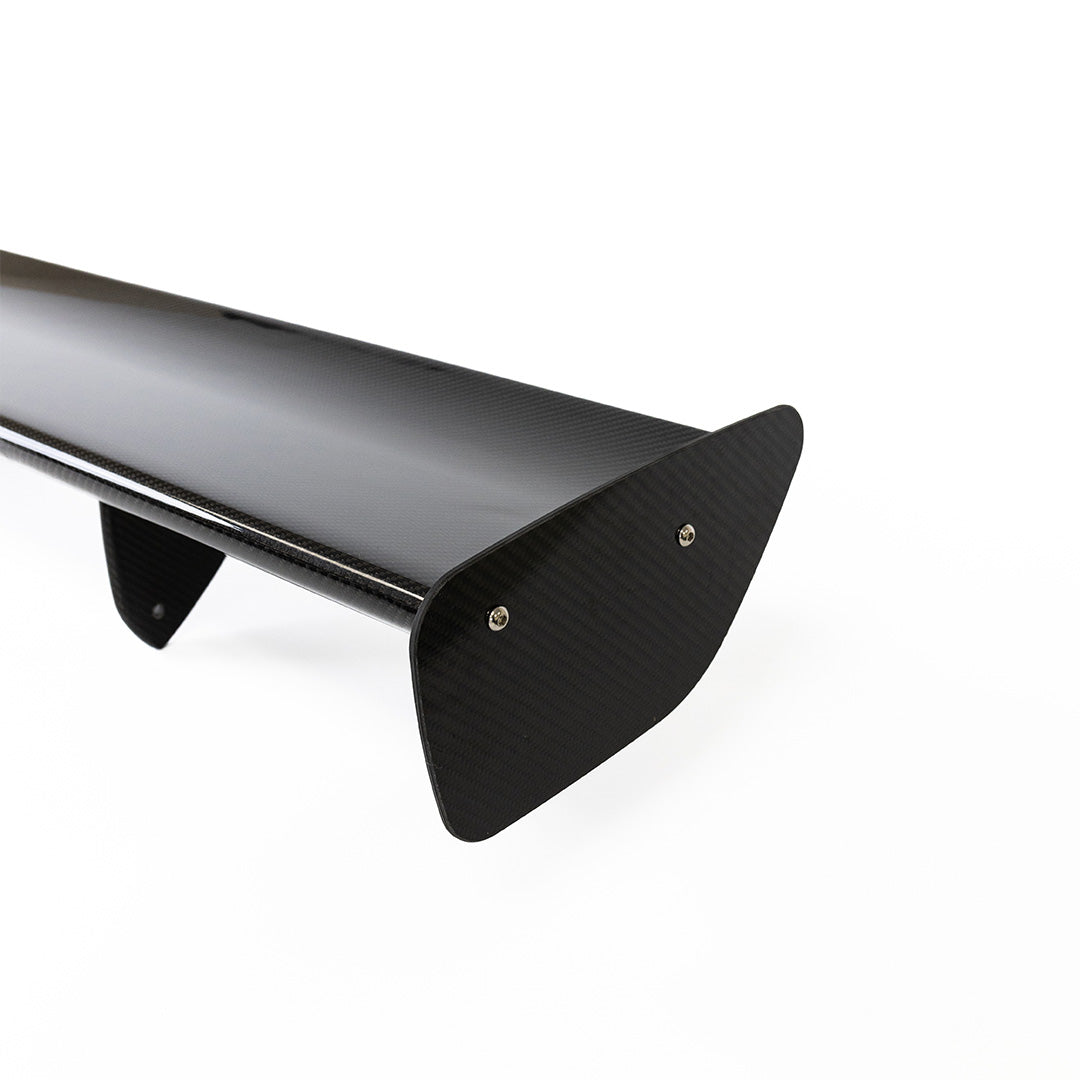

The current GT4 MK2 Rear Wing is manufactured from 2x2 pre-preg carbon fiber and cured in an autoclave. This construction replaces the hand-laid wet carbon used on the earlier version, creating a lighter, stronger and more rigid wing structure with a consistent carbon fiber finish.
Universal Fitment
The GT4 MK2 is a universal trunk-mounted rear wing rather than a vehicle-specific bolt-on product. It may be installed on BMW and other performance vehicles with suitable trunk dimensions, mounting clearance and structural support.
Vehicle-specific drilling templates are not included. Confirm the wing dimensions, stand spacing, trunk construction and intended mounting position before ordering.
Popular BMW E92 M3 Application

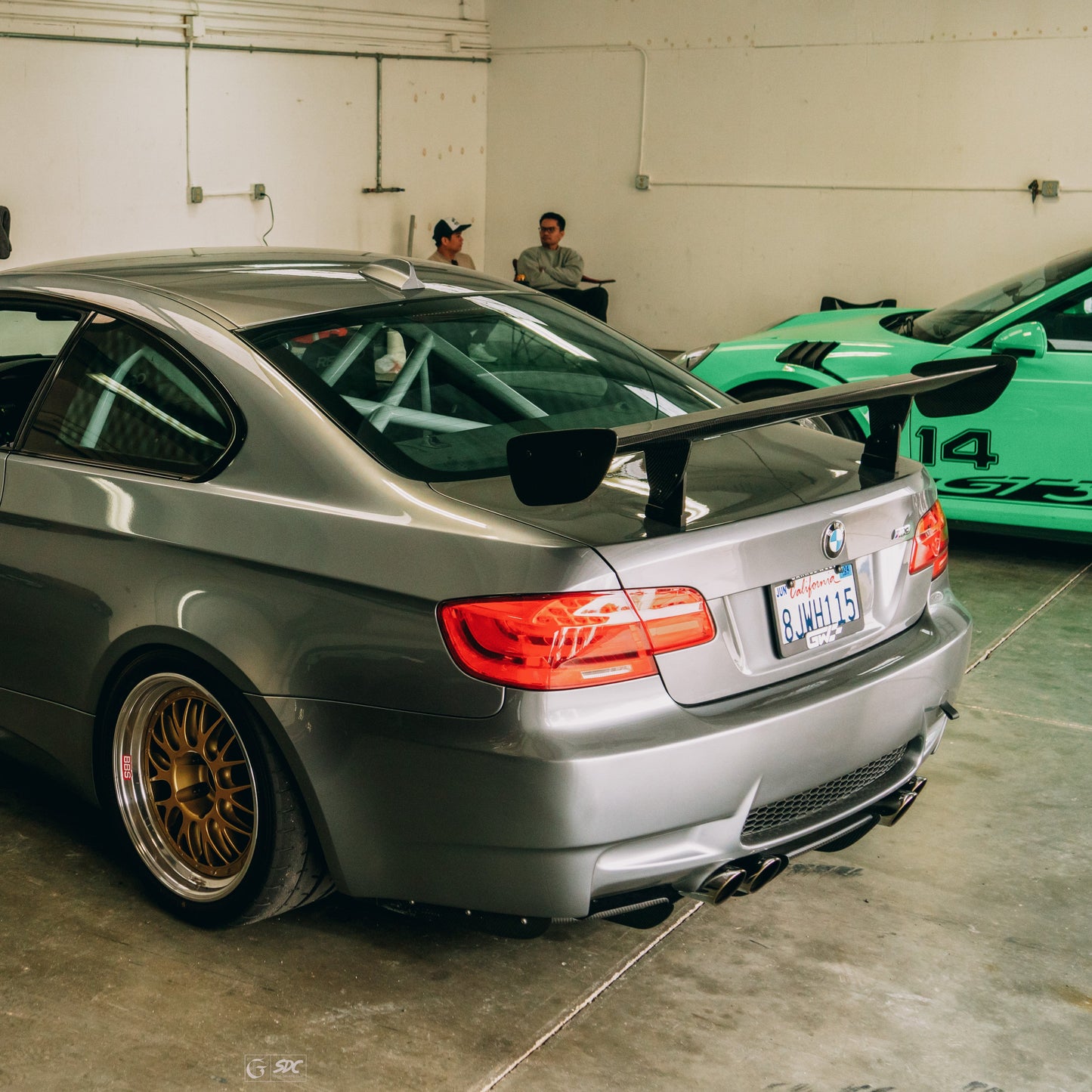

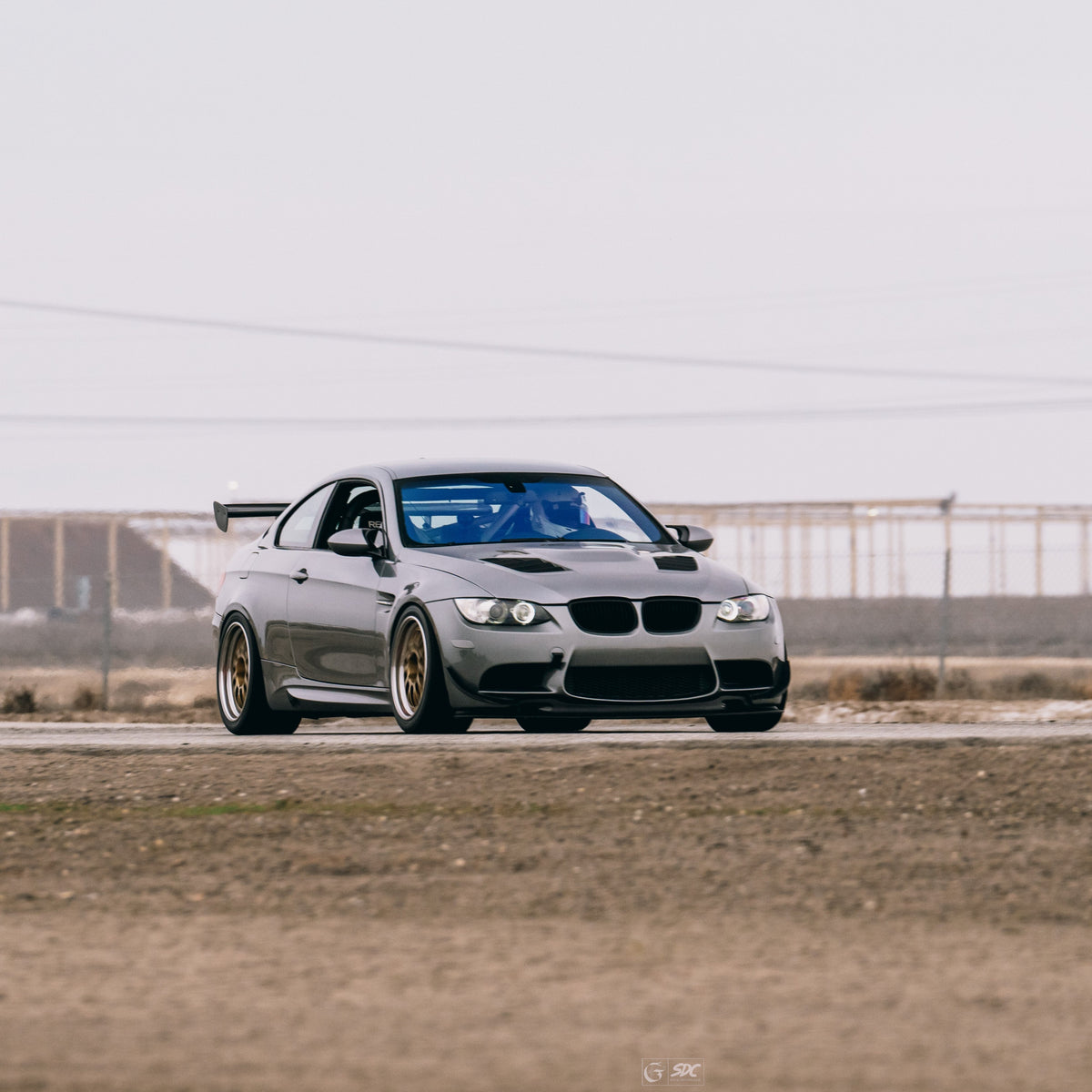

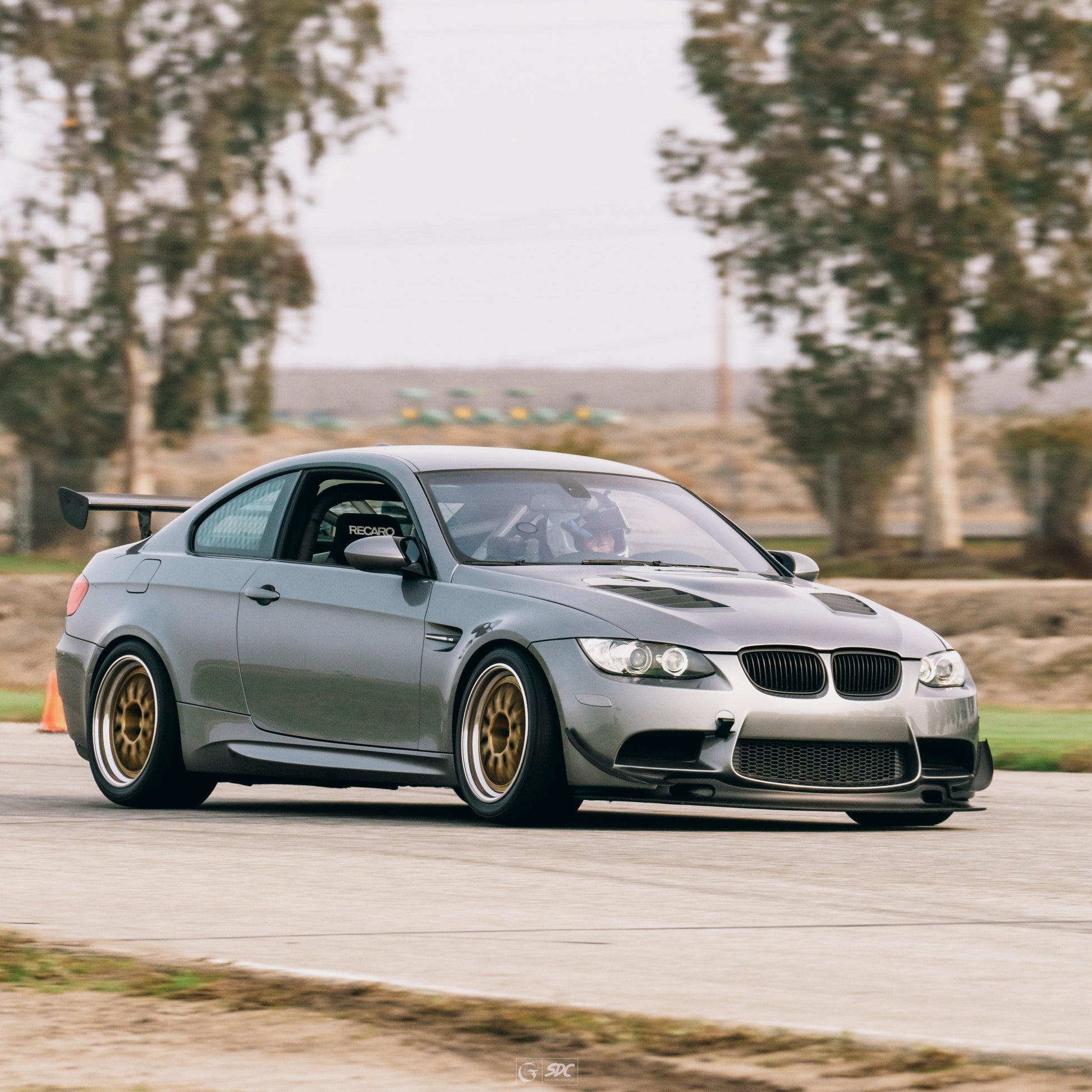

The BMW E92 M3 is one of the most popular applications for the GT4 MK2. Its 140 cm GT4-style profile complements the proportions of the E92 chassis and is commonly used on GTS-inspired, Clubsport and track-focused builds.
See the wing in two different E92 M3 applications:

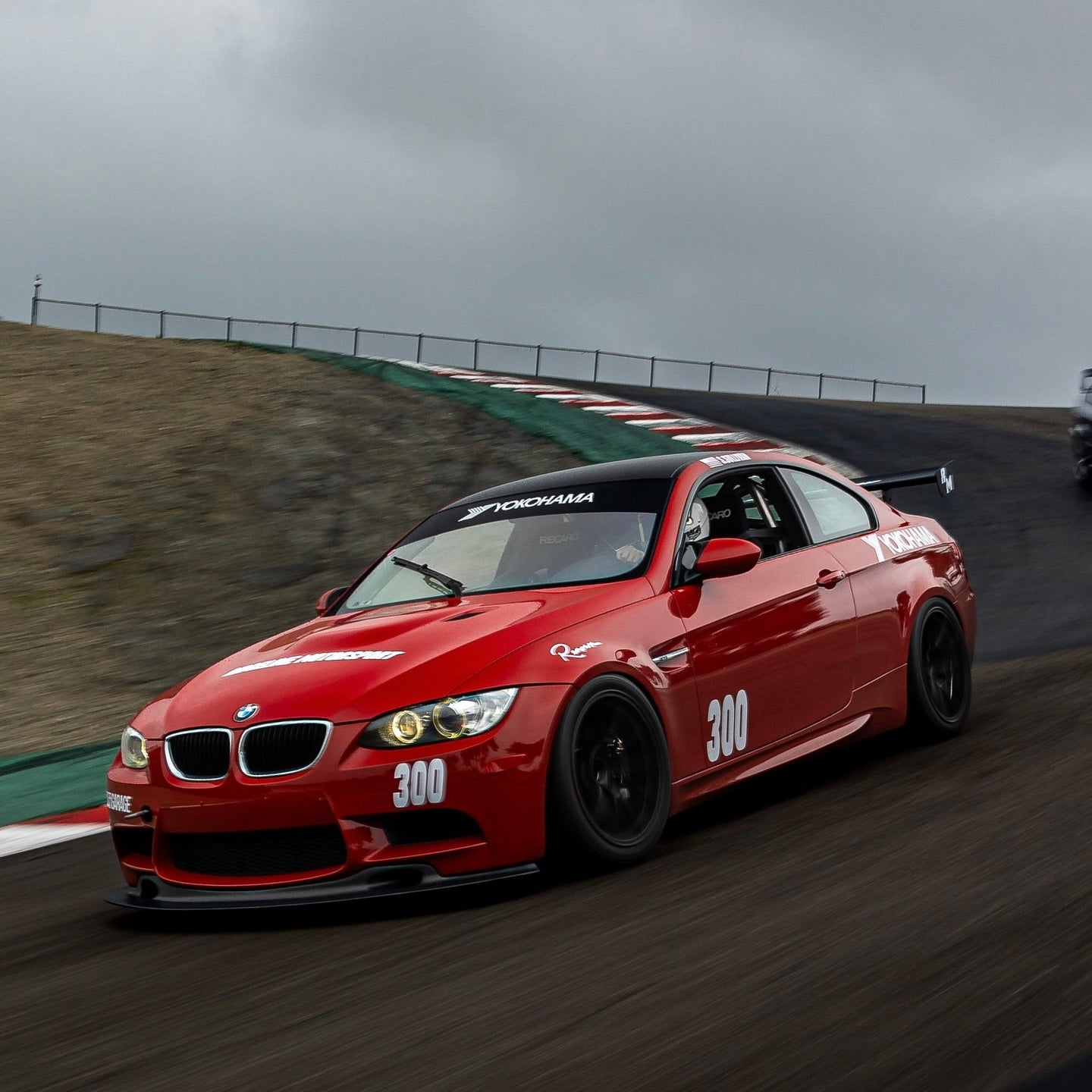

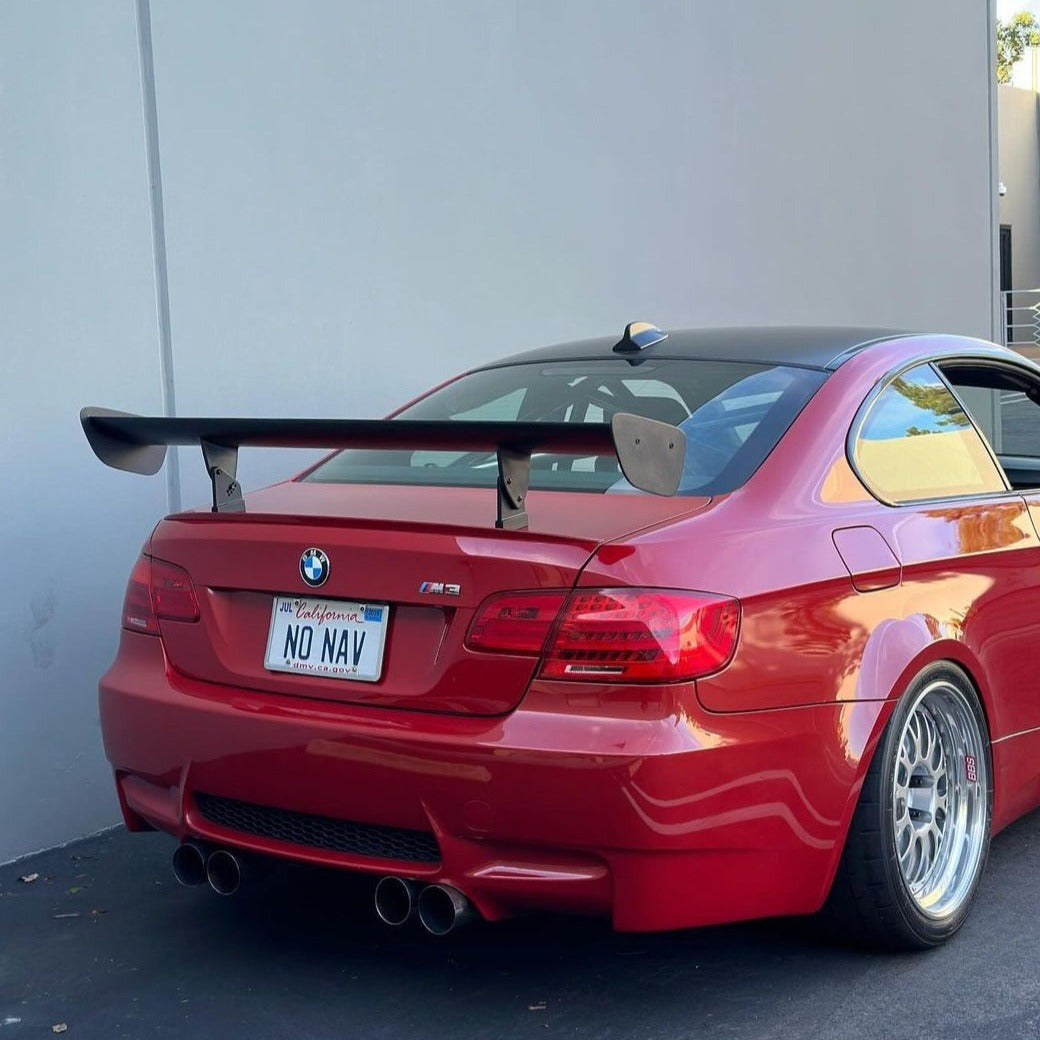

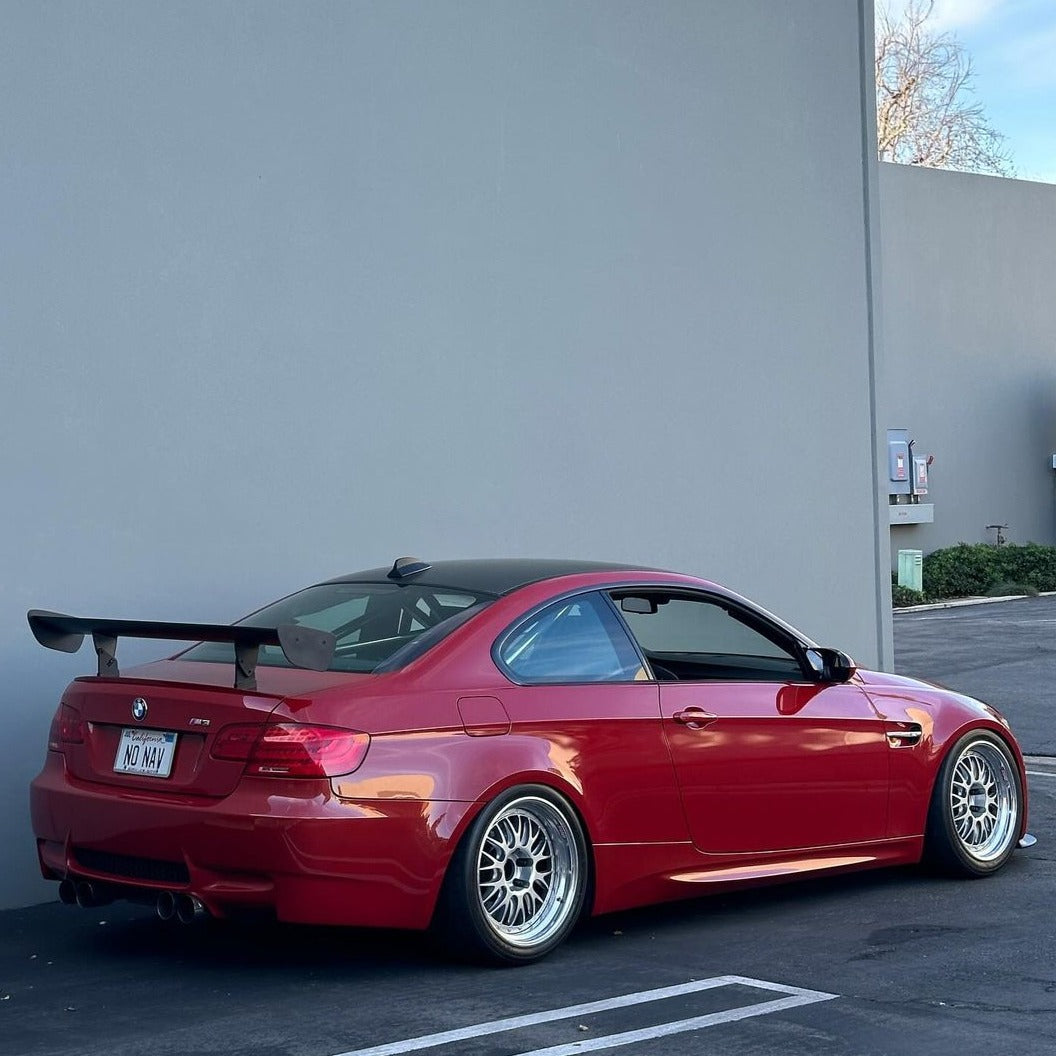

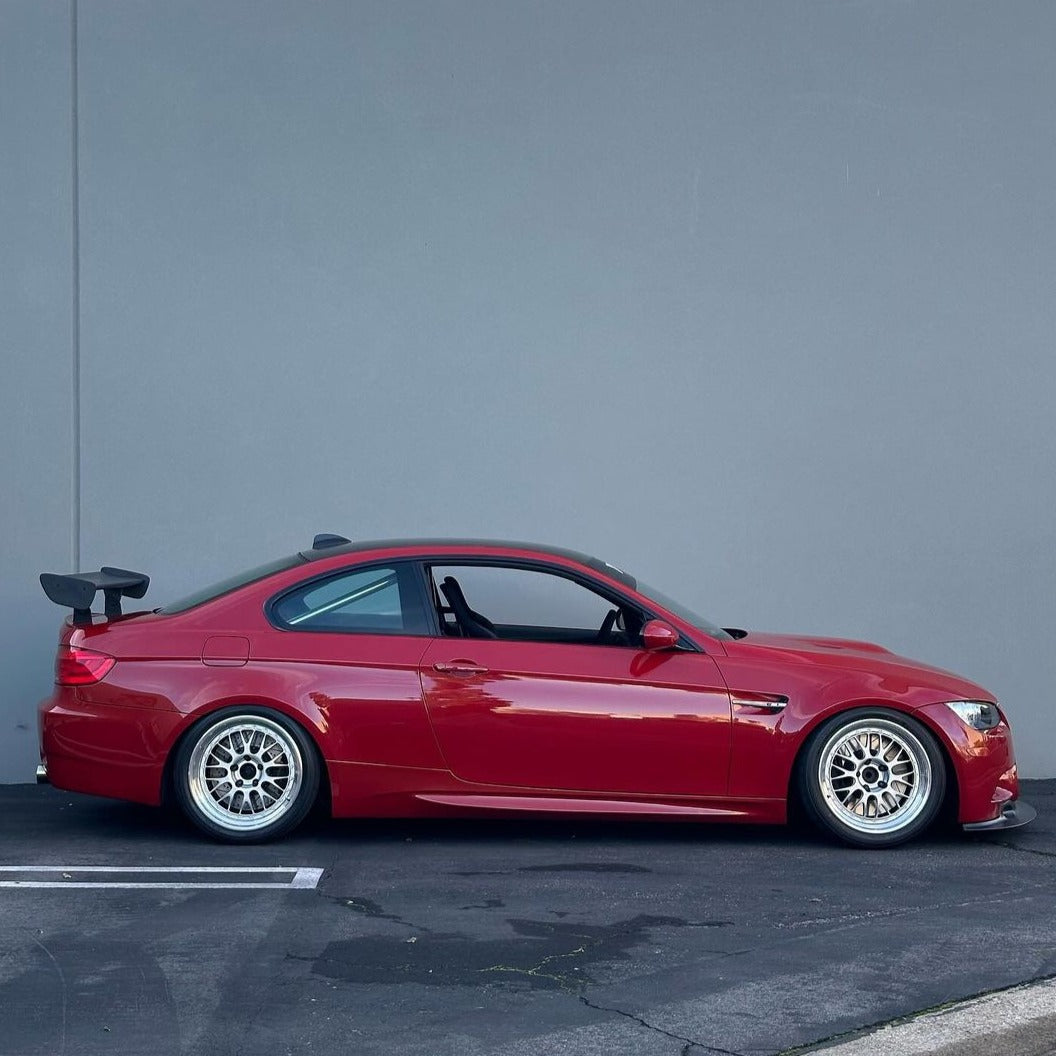

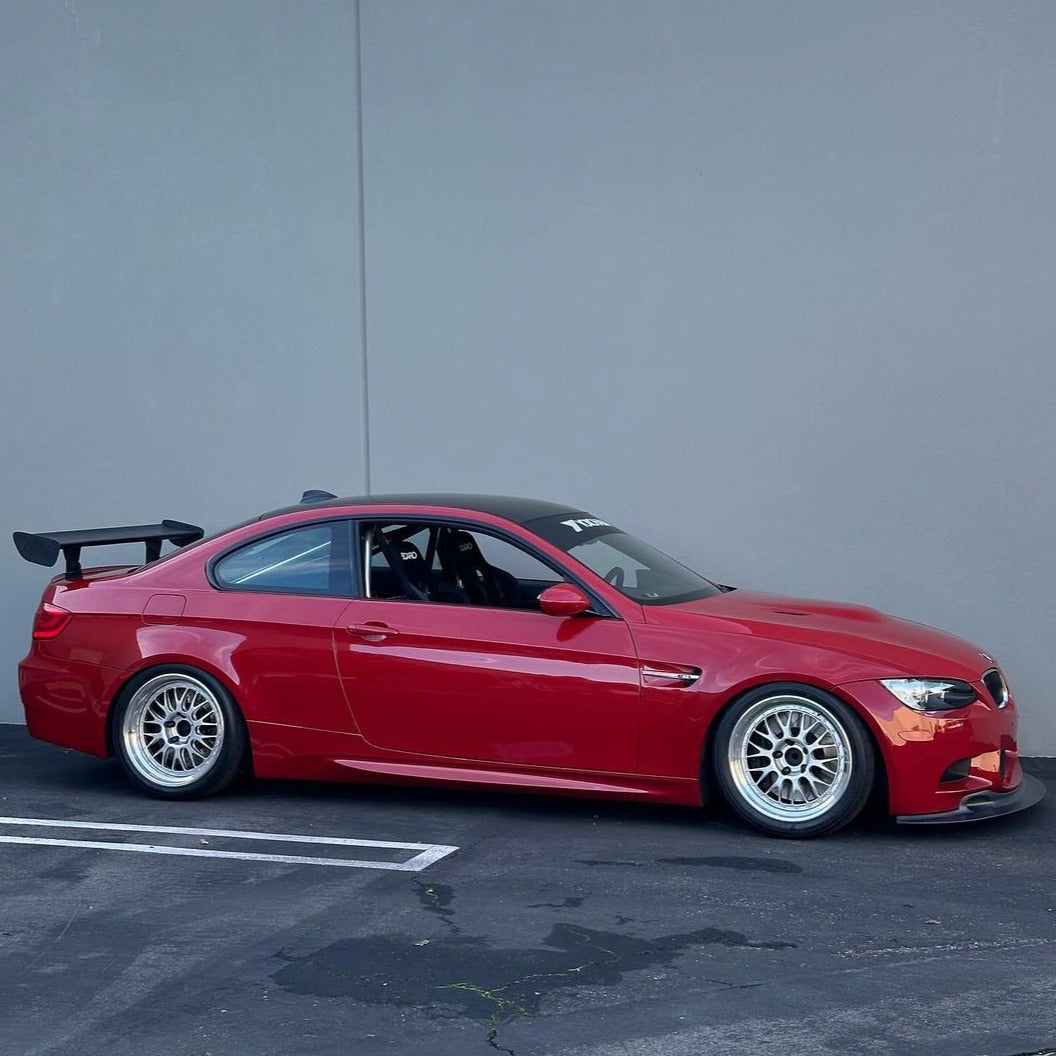

- Sean’s Melbourne Red E92 M3 GT4 Clubsport Build — Features the GT4 MK2 Rear Wing as part of a complete track-focused aero and chassis setup.

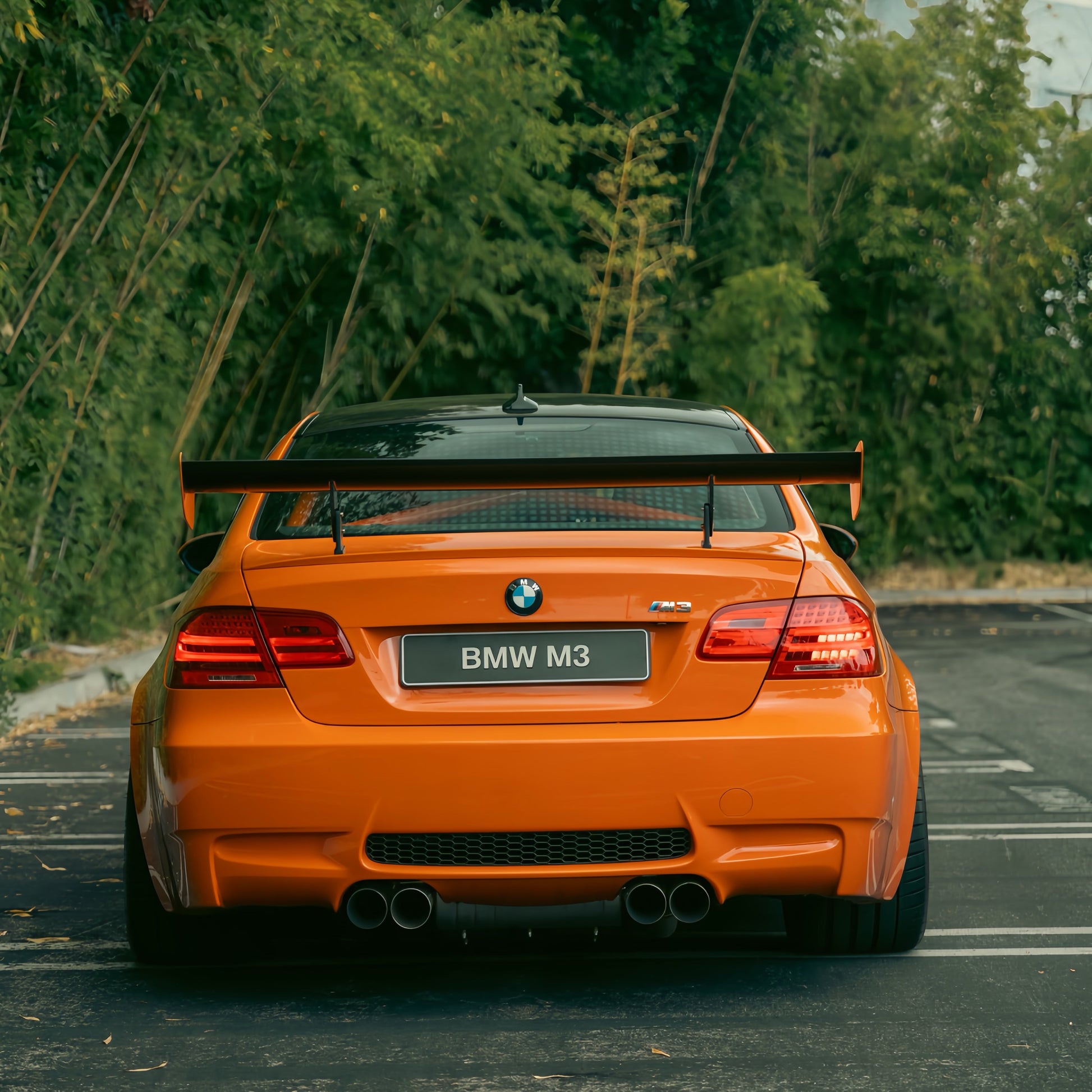

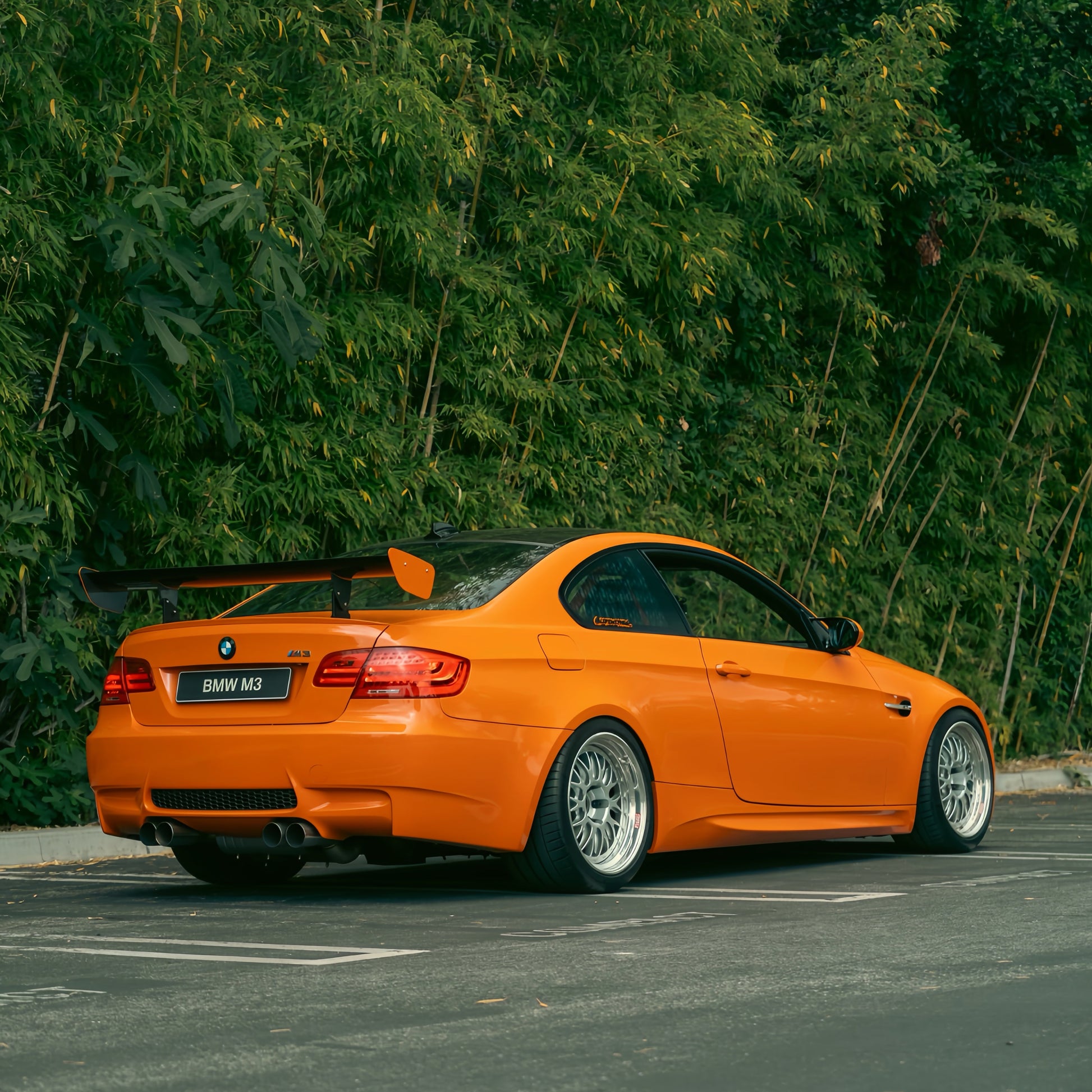

- Kevin’s Fire Orange E92 M3 GTS Tribute Build — Combines the GT4 MK2 Rear Wing with a modern interpretation of the BMW E92 M3 GTS.
Specifications
| Specification | Detail |
|---|---|
| Wing dimensions | 140 × 21 cm |

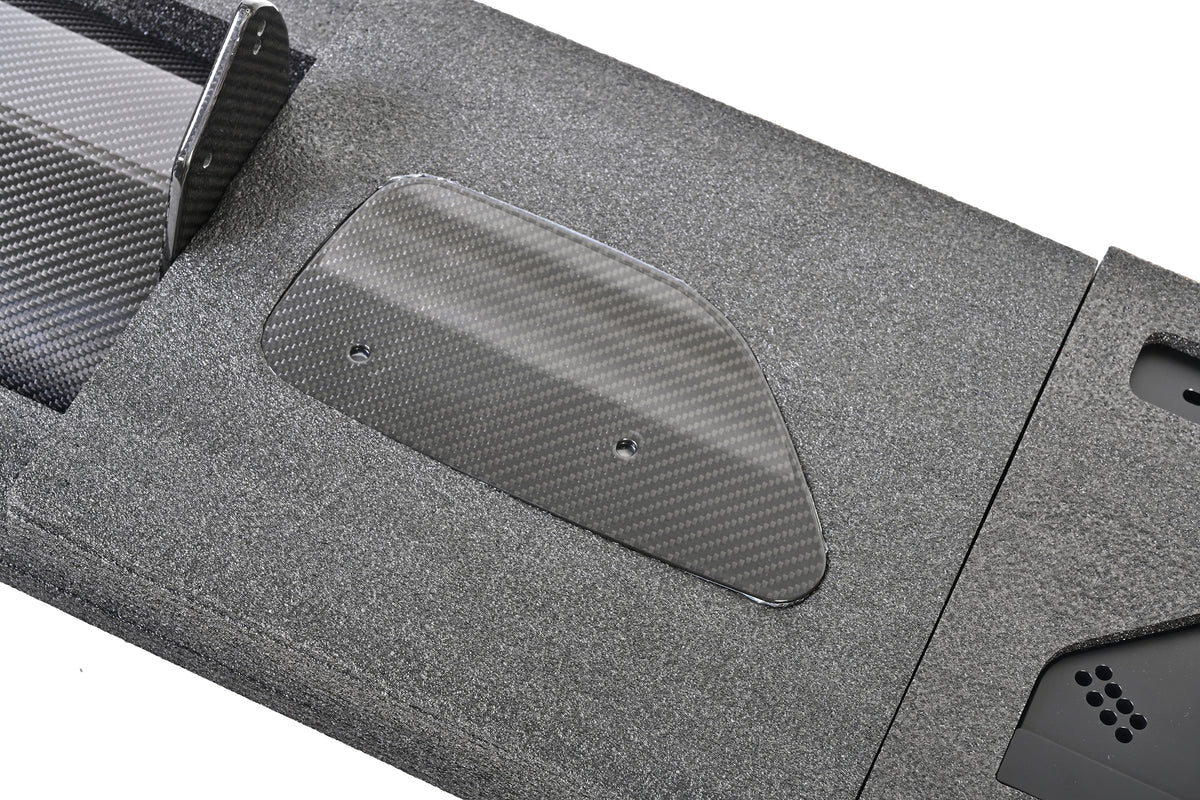

| Construction | 2x2 pre-preg autoclaved dry carbon fiber wing and endplates |
| Wing angle | Adjustable |
| Mount options | Standard or optional High Mount |
| Installation | Trunk drilling, reinforcement and professional installation required |

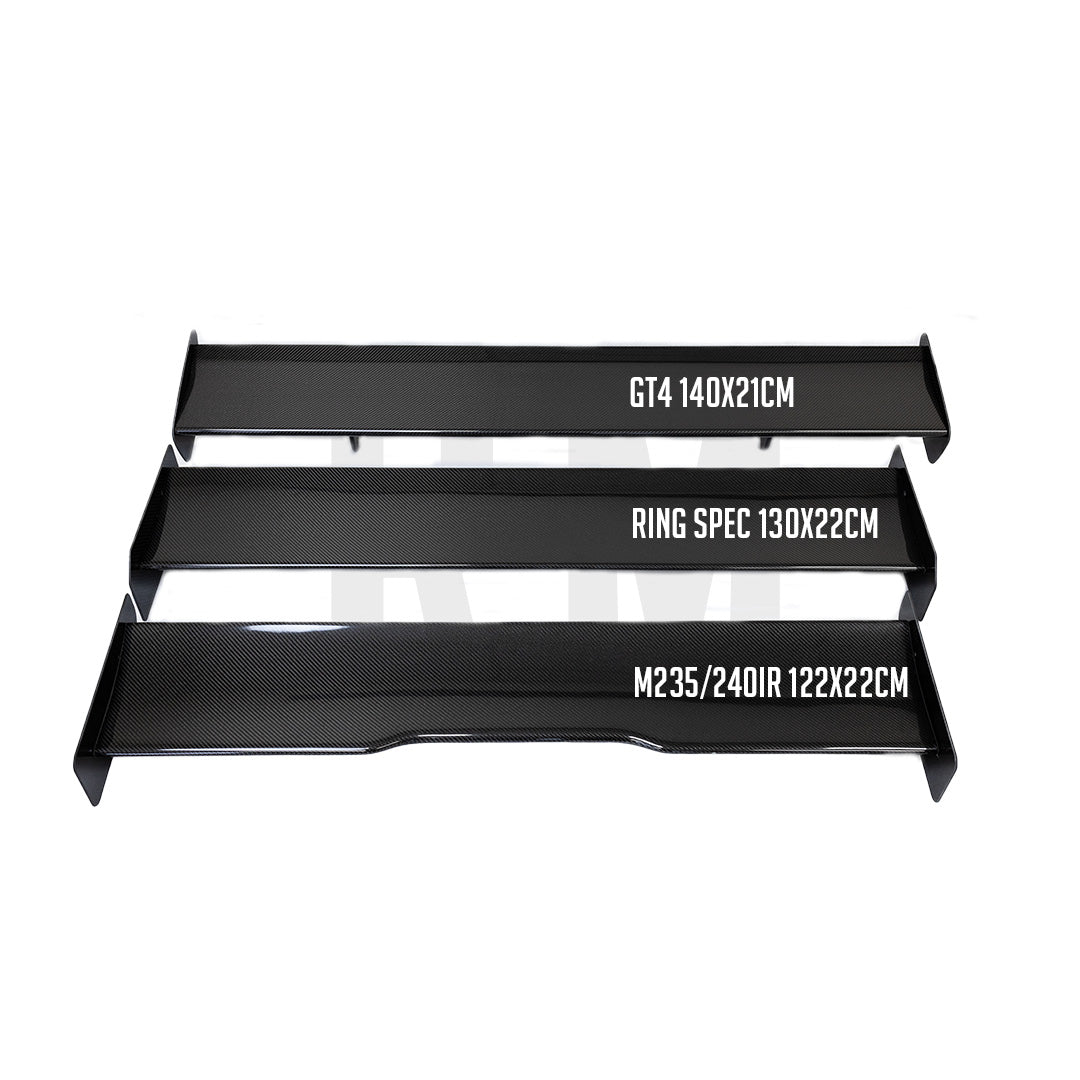

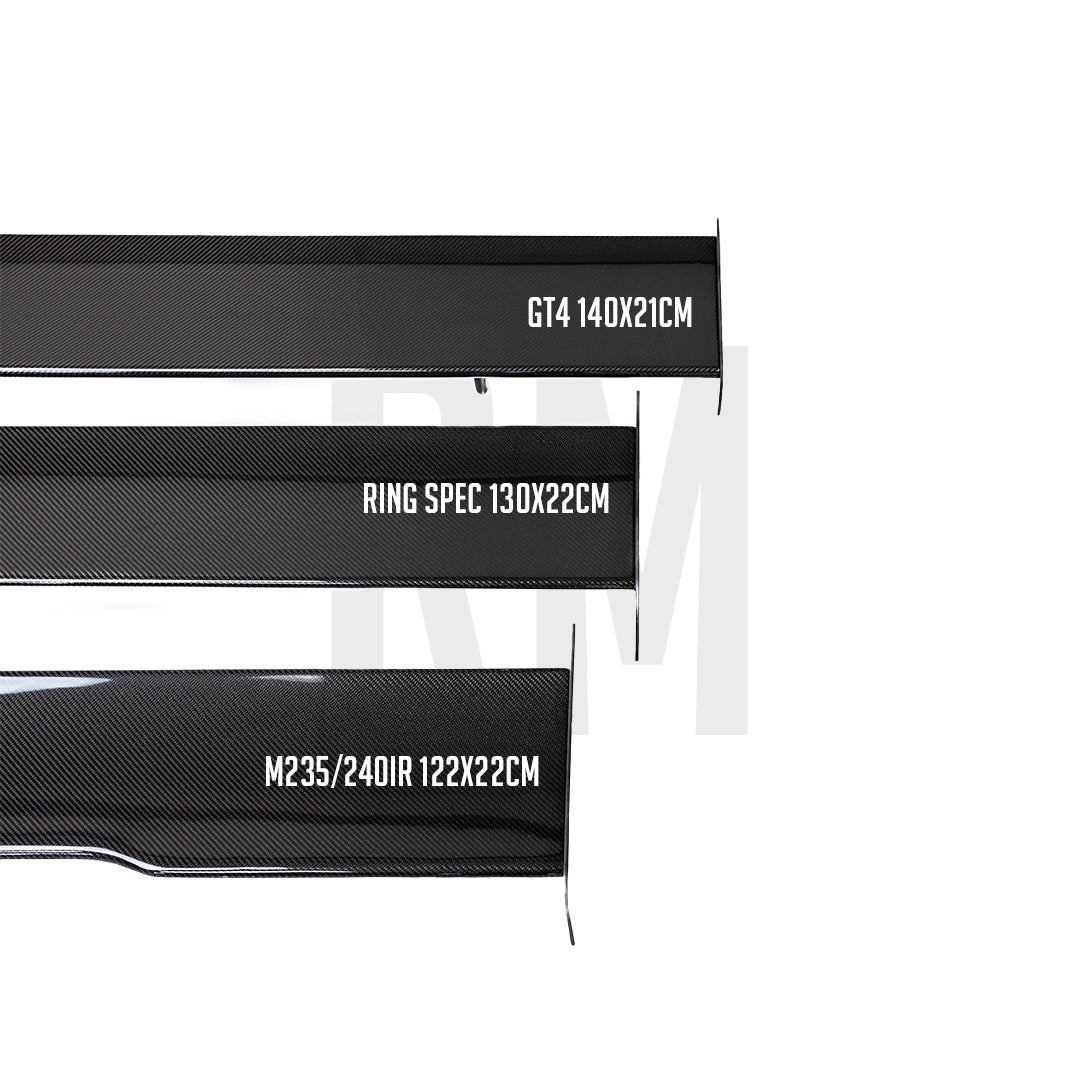

Looking for a narrower rear wing? Compare the 122 cm M235iR Carbon Fiber Rear Wing or the 130 cm Ring Spec Wing V2.
Installation
Professional installation is required to achieve proper positioning, alignment, structural reinforcement and wing-angle adjustment. Installation requires measuring and drilling the trunk or mounting surface for the selected wing stands.
Test-fit the wing, stands and reinforcement components before drilling or permanently securing any part. Installation requirements vary depending on the vehicle, trunk construction, mounting surface and selected stand configuration.

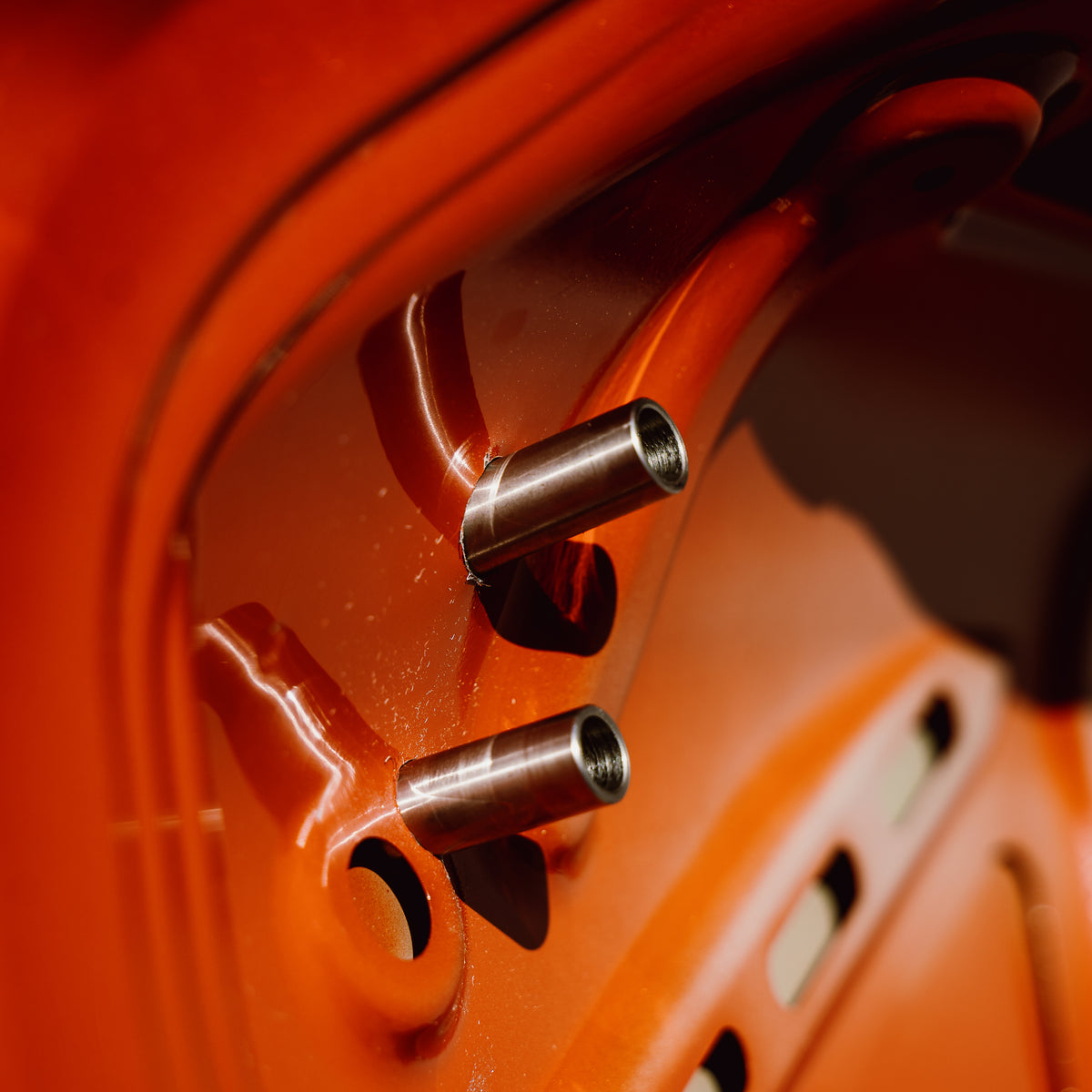

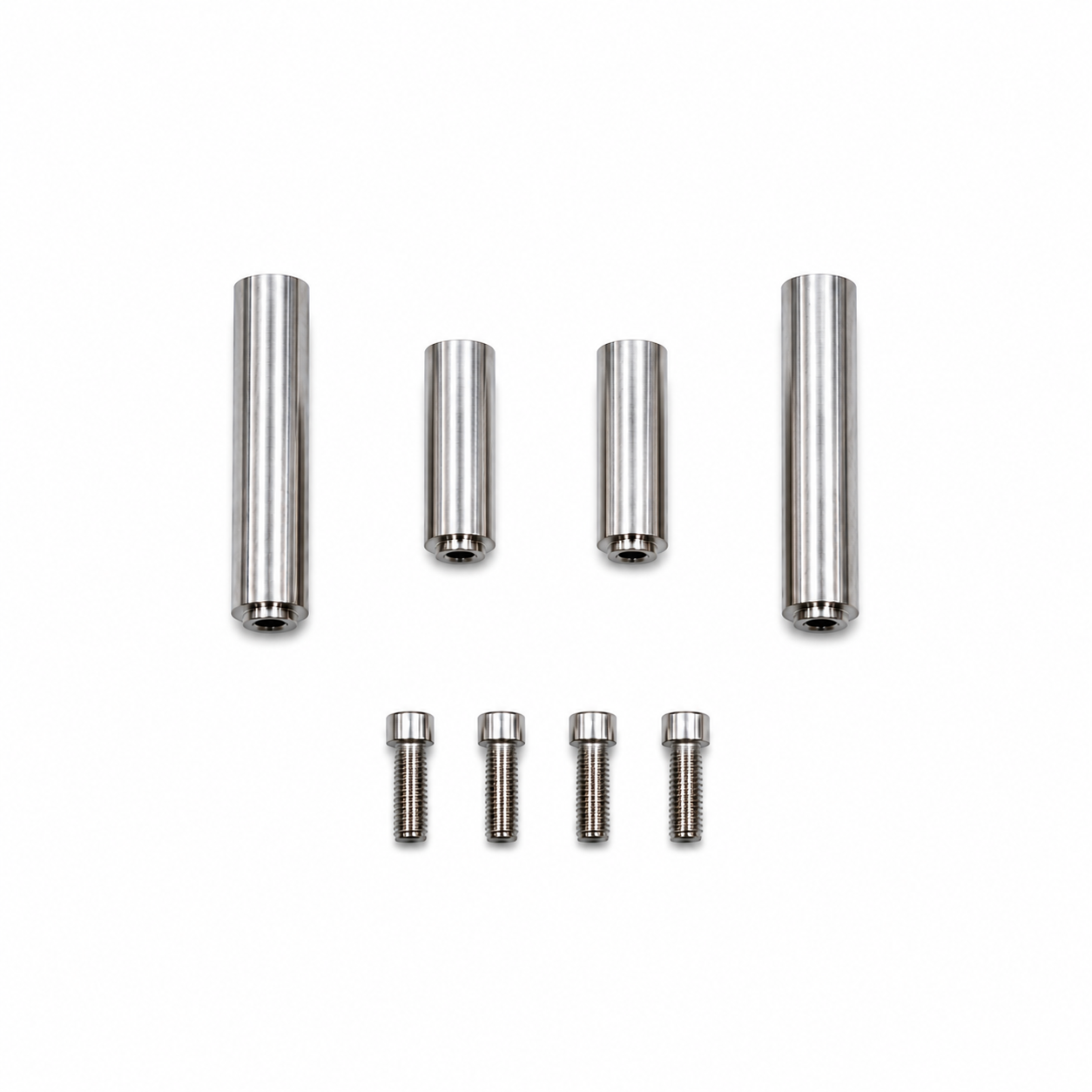

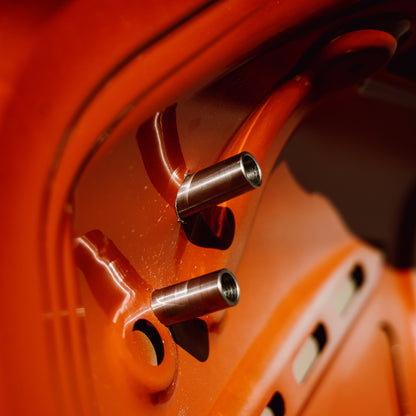

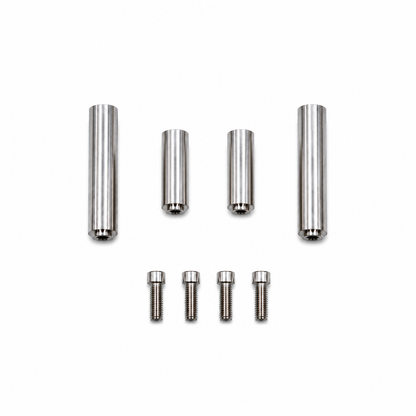

A compatible Rear Wing Trunk Reinforcement Sleeve Kit is available to connect the upper and lower trunk structures around suitable mounting locations.
Review the GT4 MK2 Rear Wing Installation Guide before installation.
For vehicles used on track, inspect the rear wing, stands, hardware and surrounding mounting areas regularly as part of routine vehicle preparation and maintenance.
Motorsport Product Disclaimer View aerodynamic performance, mounting and inspection information
Aerodynamic performance varies depending on vehicle speed, wing angle, ride height, suspension configuration, surrounding bodywork and the vehicle’s overall aerodynamic setup. No specific downforce figure is guaranteed across different vehicle configurations.
Track and motorsport use can place increased aerodynamic and mechanical loads on the rear wing, mounting stands, trunk and surrounding vehicle structure. The installer is responsible for confirming that all mounting points are properly reinforced and suitable for the intended application.
Track-driven vehicles should have the rear wing, stands, hardware and surrounding mounting areas inspected regularly.
Planning an F80 M3 or F82 M4 build? Compare BMW F80 M3 and F82 M4 rear wings, including GT4 MK2, Ring Spec V2 and GT4+ options. Confirm the selected wing’s mounting and reinforcement requirements before ordering.
